#include <ZmqZmfMessagingServiceImplementation.hpp>

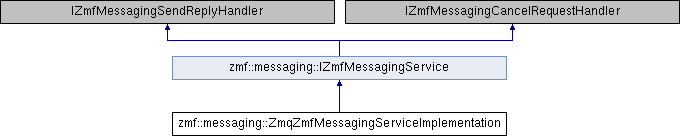

Inheritance diagram for zmf::messaging::ZmqZmfMessagingServiceImplementation:

Public Member Functions
	ZmqZmfMessagingServiceImplementation (zmf::data::ModuleUniqueId moduleId)

virtual	~ZmqZmfMessagingServiceImplementation ()

virtual bool	start (IZmfMessagingCoreInterface *const corePtr, std::shared_ptr< zmf::data::ModuleHandle > selfHandle, std::shared_ptr< zmf::config::IConfigurationProvider > config)

virtual void	stop ()

virtual void	peerJoin (std::shared_ptr< zmf::data::ModuleHandle > module)

virtual void	peerLeave (std::shared_ptr< zmf::data::ModuleHandle > module)

virtual void	subscribe (const zmf::data::MessageType &topic)

virtual void	unsubscribe (const zmf::data::MessageType &topic)

virtual void	publish (const zmf::data::ZmfMessage &msg)

virtual zmf::data::ZmfInReply	sendRequest (const zmf::data::ModuleUniqueId &target, const zmf::data::ZmfMessage &msg)

virtual void	cancelRequest (uint64_t requestID, bool manual)

virtual void	sendReply (ExternalRequestIdentity requestID, const zmf::data::ZmfMessage &response)

virtual void	onDisable ()

Detailed Description

"real" implementation of the IZmfMessagingService. Public interface matches IZmfMessagingService

Author: Jan Strauß

Date: created on 7/7/15.

Constructor & Destructor Documentation

zmf::messaging::ZmqZmfMessagingServiceImplementation::ZmqZmfMessagingServiceImplementation ( zmf::data::ModuleUniqueId moduleId )

zmf::messaging::ZmqZmfMessagingServiceImplementation::~ZmqZmfMessagingServiceImplementation ( )

virtual

Member Function Documentation

void zmf::messaging::ZmqZmfMessagingServiceImplementation::cancelRequest	(	uint64_t	requestID,
		bool	manual
	)

virtual

Removes the internal resources mapped to the given requestID. To be called internally from a ZmfInReply if it is cancelled.

Parameters

requestID the id of the request to cancel

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::onDisable ( )

virtual

to be called when the module is disabled.

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::peerJoin ( std::shared_ptr< zmf::data::ModuleHandle > module )

virtual

To be called when ZMF learns about a new peer.

Parameters

module the ModuleHandle of the joining peer

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::peerLeave ( std::shared_ptr< zmf::data::ModuleHandle > module )

virtual

To be called when a previously known peer leaves.

Parameters

module the ModuleHandle of the leaving peer

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::publish ( const zmf::data::ZmfMessage & msg )

virtual

Publishes the given ZmfMessage as event under the topic of the message's MessageType

Parameters

msg	the message to publish

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::sendReply	(	ExternalRequestIdentity	requestID,
		const zmf::data::ZmfMessage &	reply
	)

virtual

Sends the given reply to the sender of the request with the given id. Should be wrapped from the module.

Parameters

requestID	the id of the request to reply to
response	the response to send

Implements zmf::messaging::IZmfMessagingService.

zmf::data::ZmfInReply zmf::messaging::ZmqZmfMessagingServiceImplementation::sendRequest	(	const zmf::data::ModuleUniqueId &	target,
		const zmf::data::ZmfMessage &	msg
	)

virtual

Sends the given message to the given peer. A ZmfInReply is returned providing a handle for the outstanding response.

Parameters

target	the identity of the receiver
msg	the Message to send

Returns: ZmfInReply a handle for the outstanding response. May be passed to the module.

Implements zmf::messaging::IZmfMessagingService.

bool zmf::messaging::ZmqZmfMessagingServiceImplementation::start	(	IZmfMessagingCoreInterface *const	corePtr,
		std::shared_ptr< zmf::data::ModuleHandle >	selfHandle,
		std::shared_ptr< zmf::config::IConfigurationProvider >	config
	)

virtual

Starts the ZMQ Service. After the service successfully started, the other methods may be called and the implementation will start to deliver incoming events to the provided IZmfMessagingCoreInterface.

Parameters

core	pointer to the IZmfMessagingCoreInterface implementation that provides methods implementations of this class will interact with.
selfHandle	shared_ptr to the ModuleHandle describing the module instance running on top of this ZMF instance

Returns: Returns true if started successfully, false otherwise

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::stop ( )

virtual

Stops the ZMQ Service. After the service is stopped, calling any method except the start method will not have any effect. Also the implementation will remove any state (peer information, outstanding messages) currently stored.

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::subscribe ( const zmf::data::MessageType & topic )

virtual

Adds a subscription for the given topic. Semantics are equivalent to the ZMQ subscription ones.

Parameters

topic the MessageType to subscribe on

Implements zmf::messaging::IZmfMessagingService.

void zmf::messaging::ZmqZmfMessagingServiceImplementation::unsubscribe ( const zmf::data::MessageType & topic )

virtual

Removes a subscription for the given topic. Semantics are equivalent to the ZMQ subscription ones.

Parameters

topic the MessageType to unsubscribe from

Implements zmf::messaging::IZmfMessagingService.

The documentation for this class was generated from the following files:

/home/zsdn/zsdn-git/ZMF/src/messaging_implementation/ZmqZmfMessagingServiceImplementation.hpp
/home/zsdn/zsdn-git/ZMF/src/messaging_implementation/ZmqZmfMessagingServiceImplementation.cpp
