#include <IZmfMessagingService.hpp>

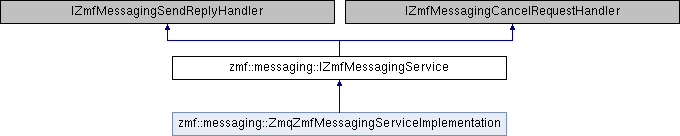

Inheritance diagram for zmf::messaging::IZmfMessagingService:

Public Member Functions
virtual bool	start (IZmfMessagingCoreInterface *const corePtr, std::shared_ptr< zmf::data::ModuleHandle > selfHandle, std::shared_ptr< zmf::config::IConfigurationProvider > config)=0

virtual void	stop ()=0

virtual void	peerJoin (std::shared_ptr< zmf::data::ModuleHandle > module)=0

virtual void	peerLeave (std::shared_ptr< zmf::data::ModuleHandle > module)=0

virtual void	subscribe (const zmf::data::MessageType &topic)=0

virtual void	unsubscribe (const zmf::data::MessageType &topic)=0

virtual void	publish (const zmf::data::ZmfMessage &msg)=0

virtual zmf::data::ZmfInReply	sendRequest (const zmf::data::ModuleUniqueId &target, const zmf::data::ZmfMessage &msg)=0

virtual void	cancelRequest (uint64_t requestID, bool manual)=0

virtual void	sendReply (ExternalRequestIdentity requestID, const zmf::data::ZmfMessage &reply)=0

virtual void	onDisable ()=0

Detailed Description

This class provides the interface definition for the ZMQ-module of ZMF. The IZmfMessagingCoreInterface class provides the logical counterpart. The Implementation

Author: Jonas Grunert

Date: created on 6/25/15.

Member Function Documentation

virtual void zmf::messaging::IZmfMessagingService::cancelRequest	(	uint64_t	requestID,
		bool	manual
	)

pure virtual

Removes the internal resources mapped to the given requestID. To be called internally from a ZmfInReply if it is cancelled.

Parameters

requestID the id of the request to cancel

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::onDisable ( )

pure virtual

to be called when the module is disabled.

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::peerJoin ( std::shared_ptr< zmf::data::ModuleHandle > module )

pure virtual

To be called when ZMF learns about a new peer.

Parameters

module the ModuleHandle of the joining peer

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::peerLeave ( std::shared_ptr< zmf::data::ModuleHandle > module )

pure virtual

To be called when a previously known peer leaves.

Parameters

module the ModuleHandle of the leaving peer

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::publish ( const zmf::data::ZmfMessage & msg )

pure virtual

Publishes the given ZmfMessage as event under the topic of the message's MessageType

Parameters

msg	the message to publish

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::sendReply	(	ExternalRequestIdentity	requestID,
		const zmf::data::ZmfMessage &	reply
	)

pure virtual

Sends the given reply to the sender of the request with the given id. Should be wrapped from the module.

Parameters

requestID	the id of the request to reply to
response	the response to send

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual zmf::data::ZmfInReply zmf::messaging::IZmfMessagingService::sendRequest	(	const zmf::data::ModuleUniqueId &	target,
		const zmf::data::ZmfMessage &	msg
	)

pure virtual

Sends the given message to the given peer. A ZmfInReply is returned providing a handle for the outstanding response.

Parameters

target	the identity of the receiver
msg	the Message to send

Returns: ZmfInReply a handle for the outstanding response. May be passed to the module.

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual bool zmf::messaging::IZmfMessagingService::start	(	IZmfMessagingCoreInterface *const	corePtr,
		std::shared_ptr< zmf::data::ModuleHandle >	selfHandle,
		std::shared_ptr< zmf::config::IConfigurationProvider >	config
	)

pure virtual

Starts the ZMQ Service. After the service successfully started, the other methods may be called and the implementation will start to deliver incoming events to the provided IZmfMessagingCoreInterface.

Parameters

core	pointer to the IZmfMessagingCoreInterface implementation that provides methods implementations of this class will interact with.
selfHandle	shared_ptr to the ModuleHandle describing the module instance running on top of this ZMF instance

Returns: Returns true if started successfully, false otherwise

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::stop ( )

pure virtual

Stops the ZMQ Service. After the service is stopped, calling any method except the start method will not have any effect. Also the implementation will remove any state (peer information, outstanding messages) currently stored.

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::subscribe ( const zmf::data::MessageType & topic )

pure virtual

Adds a subscription for the given topic. Semantics are equivalent to the ZMQ subscription ones.

Parameters

topic the MessageType to subscribe on

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

virtual void zmf::messaging::IZmfMessagingService::unsubscribe ( const zmf::data::MessageType & topic )

pure virtual

Removes a subscription for the given topic. Semantics are equivalent to the ZMQ subscription ones.

Parameters

topic the MessageType to unsubscribe from

Implemented in zmf::messaging::ZmqZmfMessagingServiceImplementation.

The documentation for this class was generated from the following file:

/home/zsdn/zsdn-git/ZMF/src/messaging/IZmfMessagingService.hpp
